Bottom scraper for grit and sand traps
SANDSCRAPE EBSS
“Reliable grit and sand removal – continuous operation with no sedimentation disruption.”
The SANDSCRAPE EBSS uses a hydrodynamic design to efficiently clear grit and sand with consistent, energy-efficient performance. Adaptable and robust, it’s ideal for new and existing tanks.
Many advantages
Power Source
The scraper can be powered by either a hydraulic system or an electric motor, providing flexibility in installation and operation. The drive unit can be placed on the bottom of the tank or on the wall over the water level, giving more possibilities in retrofitting or adaptability on existing reservoirs
Movement Mechanism

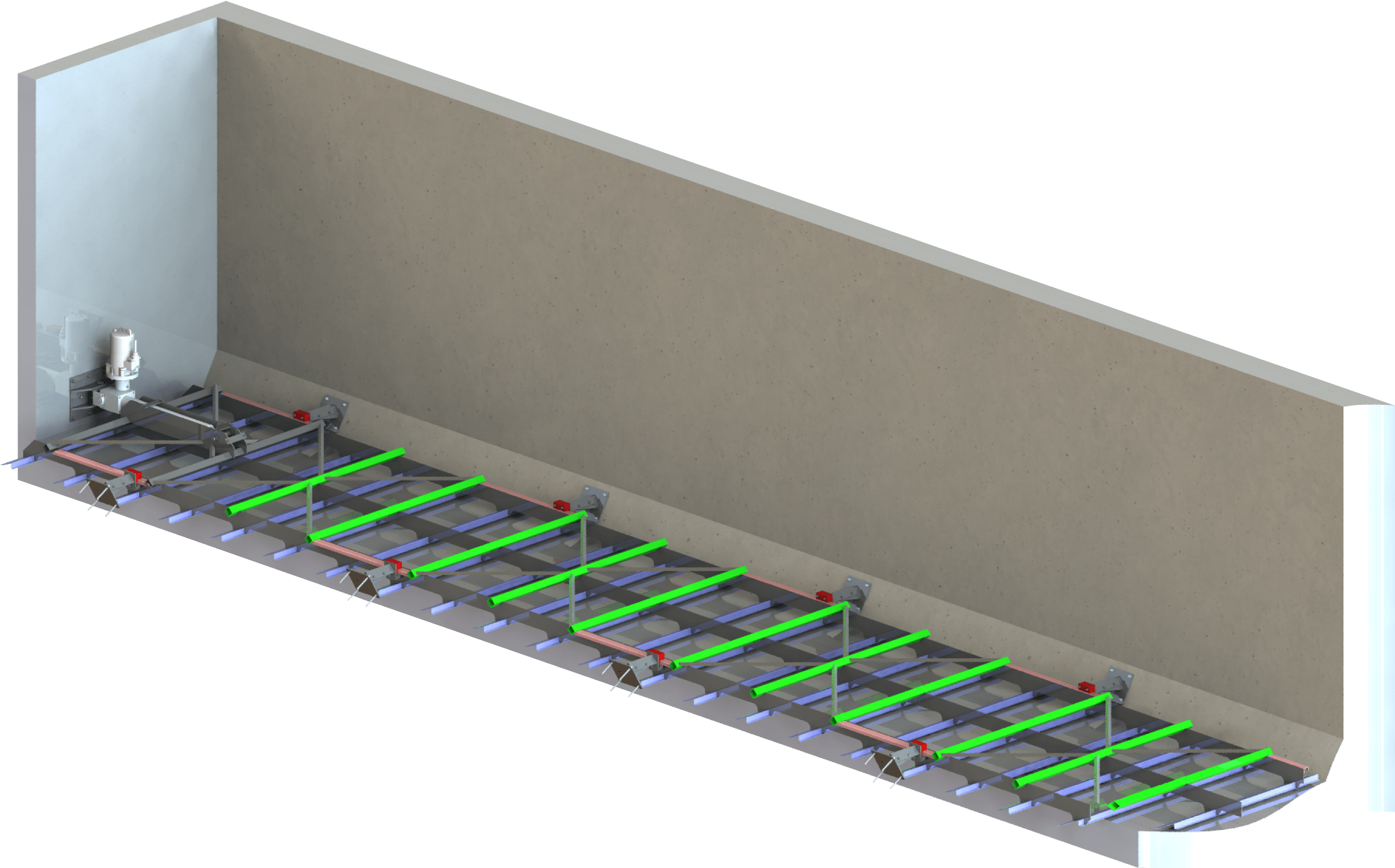

The scraper profiles move back and forth within the settling tank, effectively serving as a mobile bottom. The reciprocating motion is optimized to transport sediment towards a designated evacuation area
Hydrodynamic Design
The scraper profiles feature a hydrodynamic design that promotes the efficient movement and removal of sediment. Concave surfaces facilitate sediment transport during the forward stroke, while wedge-shaped profiles slide underneath suspended sediment layers during the return stroke
Sediment Compaction
As the scraper moves, it also effectively compacts the sludge, further enhancing sediment removal efficiency
And others...
Main characteristics
- 1one construction with only few moving parts
- 2low maintenance costs
- 3continuous sediments removal
- 4noninterruptible sedimentation
- 5resistant and strong
- 6easy adaption in existing reservoirs
- 7thickening of sediment
- 8for treatment of complete bottom area
- 9 available with submerged and wall-mounted drive
clean and clear
Our production workshops adhere to high standards, ensuring the delivery of top-quality products. We design water purification equipment to to make your life healthy and happy
Contact us to start your project
